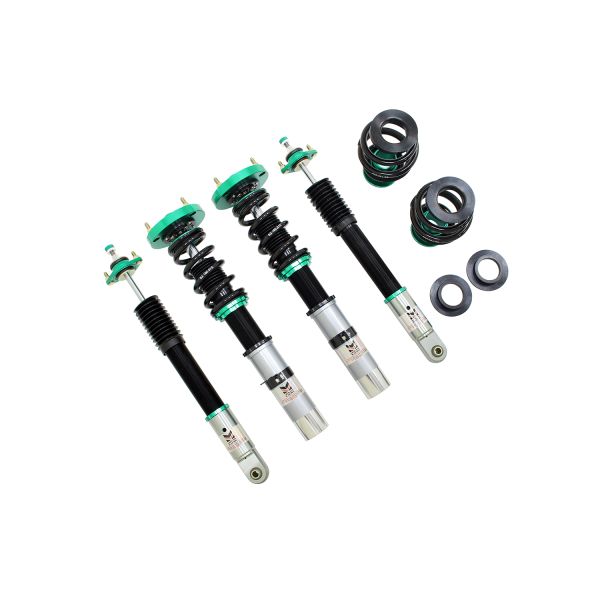

Megan Racing BMW E30 w/51mm Front Strut 84-91 Street Coilovers E3051

The Euro Street Series is our new Luxury Package based off of our Street-Series coil-over line-up using similar specifications and design, but offering a more conservative spring and damper setup for a more comfortable ride, yet still providing a sporty feel and control.

Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.

Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.

Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows you to retain the factory ride-height for OEM appearance with performance handling, drop your car all the way down for an aggressive stance, or fine tune your suspension for the race-track to lowering your center of gravity to gain full potential of your vehicle's handling capabilities.

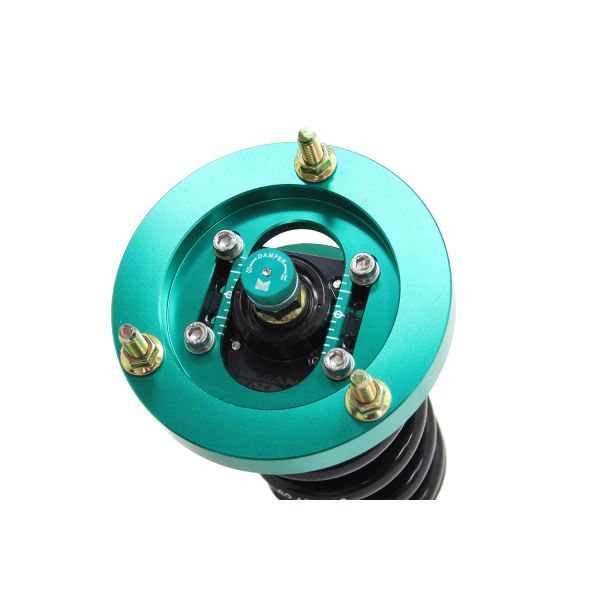

On applications utilizing strut-type suspension designs, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.

The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.

SPECIFICATIONS & FEATURES:

APPLICATION: BMW E30 3-series with 51mm Front Strut outer diameter
Does not fit AWD models.

NOTE: All 6-cylinder E30 models (3-series 84-91)and the 90-91 318i/is/ic models (with the M42 4-cylinder) use the larger front strut diameter. For US models, only the 84-85 318i models use the smaller size strut tube.

*Usage of lower offset aftermarket front wheels is recommended. If stock front wheels are used with this coil-over system, 0.5" wheel spacers are recommended for clearance.

SPRING RATES:
F: 62mm ID; 200mm length; 8kg/mm
R: 62mm ID; 135mm length; 8kg/mm

DAMPER SPECS:
F: 120mm stroke; 280mm length; M2 valving code
R: 150mm stroke; 250mm length; 44R01 valving code

- 32 Levels of Damper Force Adjustment

- Rubber Upper Mounts

- Rubber Dust Boots

- Adjustable Ride Height

- Aggressive Spring Rates

- Single-Cylinder Design

- Aluminum Brackets

32 Levels of Adjustment:

1-8: Suggested for track use.
9-16: Suggested for mountain/aggressive use.
17-32: Suggested for common street use.

- All coil-over damper kits come with 1-year manufacturer-defect warranty.

- All Hardware is Included

NOTE: Need to re-use the OEM front spindles and TIG or MIG weld with the front struts.
